HUAWEI Rubber Sleeve Fiber Optic Feeder Clamp Outdoor Use

Name: HUAWEI Rubber Sleeve Fiber Optic Feeder Clamp Outdoor Use
Brand: DOWELL
Price: 1 USD

Buy cheap HUAWEI Rubber Sleeve Fiber Optic Feeder Clamp Outdoor Use product

Place of Origin : Zhejiang, China

Brand Name : DOWELL

MOQ : 1000 pieces

Model Number : DW-1071

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000 PCS Per 7 Days

Delivery Time : 7-15 Days

Clamp Type : European standard

Cable Type : Power (hybrid) cable and fiber cable

Size : OD 12-22mm DC power cable OD 7-8mm fiber cable

Number of Cables : 3 power cable + 3 fiber cable

Contact Now

HUAWEI Rubber Sleeve Fiber Optic Feeder Cable Clamp Outdoor Use

This cable clamp is a sort of module assembly for fixing cables. It's made of resist ultraviolet and enduring high temperature material. It fits for fixing the circular fiber cable of φ7mm orφ7.5mm and 3.3 square, 4 square, 6square, 8.3 square cable. It can set three fiber cables and three cables in most. The C-shape bracket is light and terse and It's easy to fix reliably.

Besides, it can offer a combined solution for power cables (DC) and fiber optic cables (FO). This clamp is very effective and flexible when fixing different size of DC power cables.

Specification

Clamp Type	European standard	Cable Type	Power (hybrid) cable and fiber cable
Size	OD 12-22mm DC power cable OD 7-8mm fiber cable	Number of Cables	3 power cable + 3 fiber cable
UV Resistance	≥1000 hours	Compatible Max Diameter	19-25mm
Compatible Min Diameter	5-7mm	Twin Plastic Clamps Material	Fiberglass reinforced PP, Black
Metal Material	Stainless steel 304 or hot galvanized	Mounting On	Steel wire cable tray
Max Stack Height	3	Vibration Survival	≥4 hours at resonant frequency

Application

1. Telecom cable

2. Fiber cable

3. Coaxial cable

4. Feeder cable

5. Hybrid cable

6. Corrugated cable

7. Smooth cable

8. Braid cable

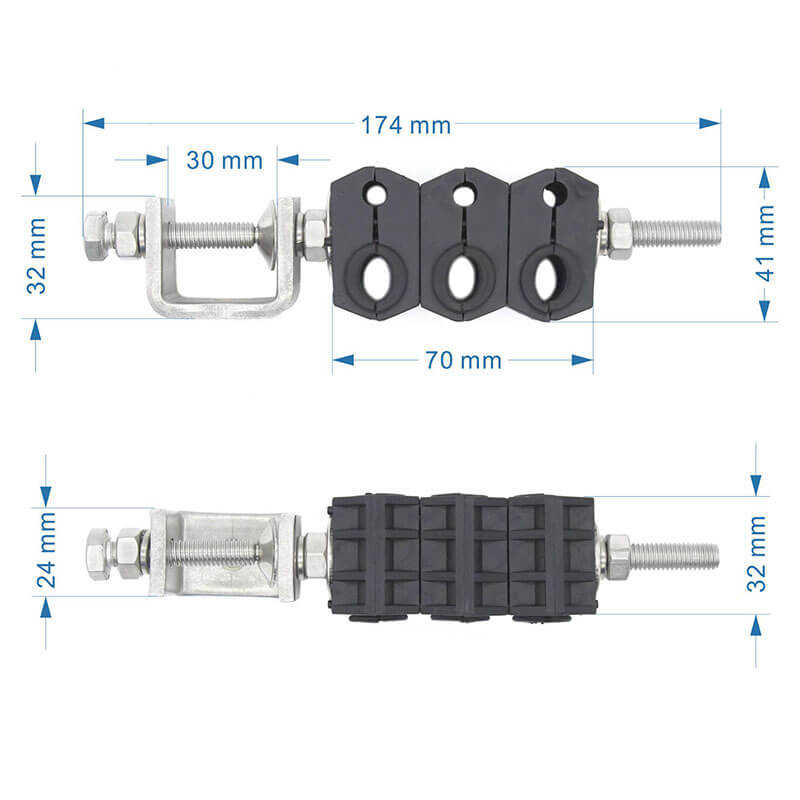

Dimension

Our Package

Production Flow

More products

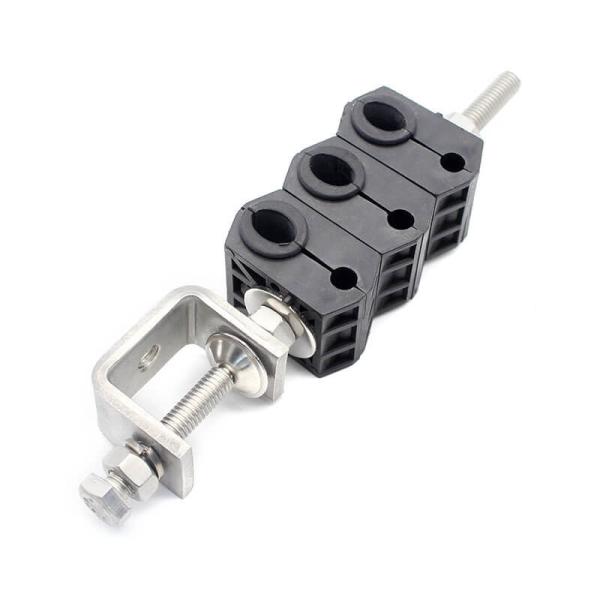

HUAWEI Rubber Sleeve Fiber Optic Feeder Clamp Outdoor Use Images
