ADSS Fiber Optic Anchor Clamp 304 Stainless Steel

Name: ADSS Fiber Optic Anchor Clamp 304 Stainless Steel
Brand: DOWELL
Price: 1 USD

Buy cheap ADSS Fiber Optic Anchor Clamp 304 Stainless Steel product

Model Number : PA-02-SS

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Packaging Details : Normal Package

Supply Ability : 10000 PCS Per 7 Days

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Material : UV protected thermoplastic

Cable Diameter : 4-8 mm

Mini Breaking Load : 500/600 daN

Color : Black

Contact Now

ADSS Fiber Optic Anchor Clamp 304 Stainless Steel

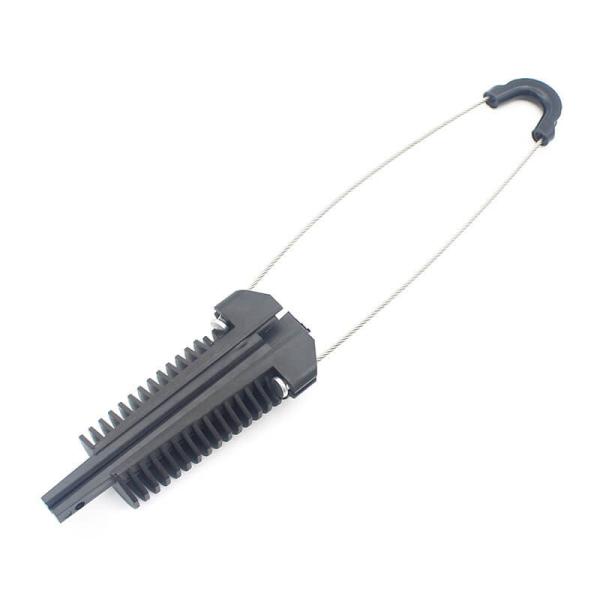

These anchoring clamps are made of an opened conical body, a pair of plastic wedges and a flexible bail equipped with an insulating thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamp is not under full load. All parts are secured together to prevent any loss during installation.

Specification:

Body/Wedge Material	UV protected thermoplastic
Cable Diameter	6-20 mm
Mini. Breaking Load	500/600 daN

Application:

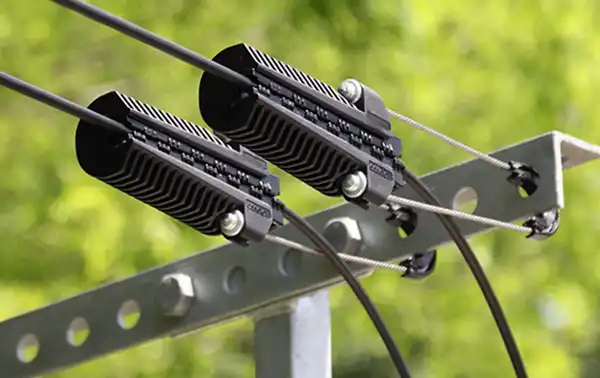

These clamps will be used as cable dead-end at end poles (using one clamp). Two clamps can be installed as double dead-end in the following cases :

1. at jointing poles

2. at intermediate angle poles when the cable route deviates by more than 20°.

3. at intermediate poles when the two spans are different in lengths

4. at intermediate poles on hilly landscapes

ADSS Fiber Optic Anchor Clamp 304 Stainless Steel

Testing:

These products have been validated according to internationally recognised standards :

1 Climatic ageing test according to NF EN C-20-540 standard dated June 2002.

2 Corrosion test according to NF EN 60068-2-52 dated December 1996.

3 Mechanical test according to France Telecom FT R&D/7890 dated July 2003.

4 Vibration test according to France Telecom FT R&D/7890 dated July 2003 and NF EN 50289-3-13 dated August 2003.

5 Insertion loss < 0.2 dB.
