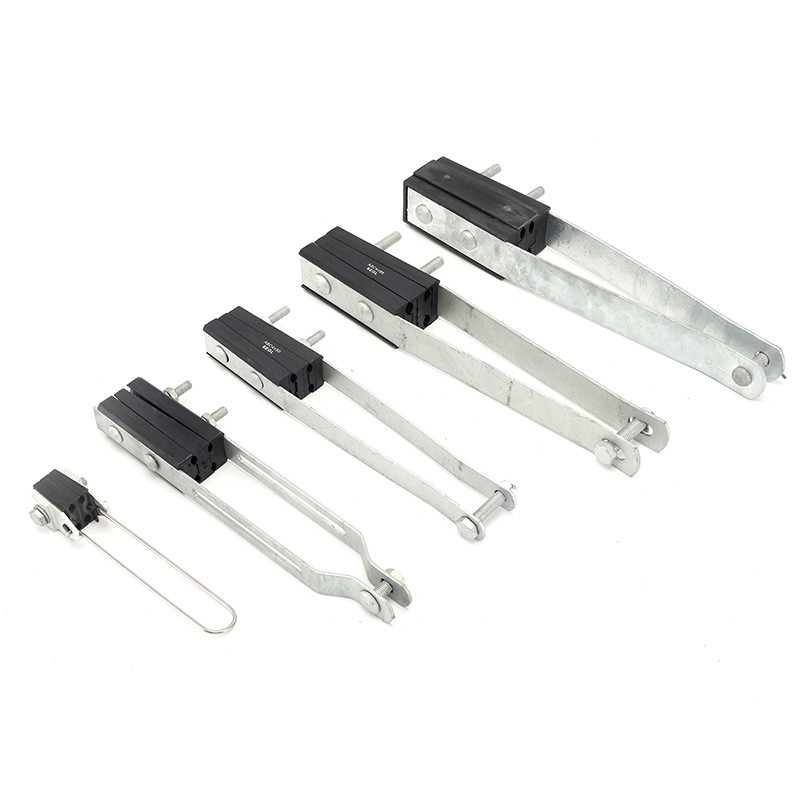

UV resistance Polymer PAT Tension Clamp For Main Line 4AN

Name: UV resistance Polymer PAT Tension Clamp For Main Line 4AN
Brand: DOWELL
Price: 1 USD

Buy cheap UV resistance Polymer PAT Tension Clamp For Main Line 4AN product

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : DW-AH05

Supply Ability : 10000 PCS Per 7 Days

MOQ : 100 Pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Type : PAT50, PAT120

DIA.(mm) : 11-14, 14-17

MBL(daN) : 2000, 3500

Cross section(mm²) : 4x(16-50), 4x(50-120)

Contact Now

UV resistance Polymer PAT Tension Clamp For Main Line 4AN

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutural messenger, the wedge can be selfadjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Specification

Type	Cross section(mm²)	Messenger DIA.(mm)	MBL(daN)
PAT50	4x(16-50)	11-14	2000
PAT120	4x(50-120)	14-17	3500

Application

PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables. These clamps are used for anchoring and tightening insulated conductors.

UV resistance Polymer PAT Tension Clamp For Main Line 4AN

Our Package

More Sizes

Production Flow

UV resistance Polymer PAT Tension Clamp For Main Line 4AN Images
