25Gb/s 1310nm 10km SFP28 Transceiver For High Speed 25G Ethernet Data Centers

MOQ : 10 pieces

Supply Ability : 1000PCS Per Week

Wavelength : 850nm/1310nm

Distance : 100m-80km

Delivery Time : 7-15 days

Fiber Type : MMF/SMF

Payment Terms : T/T

Place of Origin : China

Brand Name : DOWELL

Connector : LC

Model Number : DW-1325G-L10D

DDMI : YES

Bit Rate : 25Gb/s

Contact Now

25G LR 1310nm 10km SFP28 Transceivers
DW-1325G-L10D compatible SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. The SFP28 transceiver works on the same 10G network cabling infrastructure, boosting speed by at least 2.5 times. It also features DDM/DOM for real-time monitoring of operating status.
This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. It offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switches and is fully compliant with the SFP28 MSA, CPRI and eCPRI standards. Featuring low power consumption and high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center applications.
Key Features
  • Supports 25.78Gb/s aggregate bit rate
  • 1310nm DFB transmitter and PIN/TIA receiver
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • Hot-pluggable SFP28 footprint
  • LC receptacles
  • Single 3.3V power supply
  • Maximum power dissipation ≤1.5W
Absolute Maximum Ratings
Parameter Symbol Min. Typ. Max. Unit Ref.
Maximum Supply Voltage Vcc -0.5 3.6 V
Storage Temperature TS -40 85 ℃
Relative Humidity RH 0 85 % Non-condensing
Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Ref.
Power Supply Voltage Vcc 3.135 3.3 3.465 V
Power Dissipation Pmax 1.5 W
Operating Case Temperature TC 0 70 ℃ Commercial
Bit Rate BR 25.78 Gbps
Transmission Distance TD 10 km
Optical Characteristics
Parameter Symbol Min. Typical Max. Unit Notes
Signaling Rate DR 25.78125 ± 100ppm GBd
Center Wavelength λc 1295 1310 1325 nm
-20dB Spectral Width Pm 1 nm
Side-mode Suppression Ratio SMSR 30 dB
Average Output Power Pavg -7 2 dBm
Extinction Ratio ER 3 dB
Optical Return Loss Tolerance ORL 20 dB
Transmitter reflectance Tref -26 dB
Relative Intensity Noise (OMA) RIN -130 dB/Hz
Transmitter OFF Output Power POff -20 dBm
Receiver Sensitivity(OMA) Psen -12 dBm 1
Overload Pmax 2 dBm
Receiver reflectance Ref -26 dB
LOS Activation Level PLa -30 dBm
Types
25Gb/s 1310nm 10km SFP28 Transceiver For High Speed 25G Ethernet Data Centers

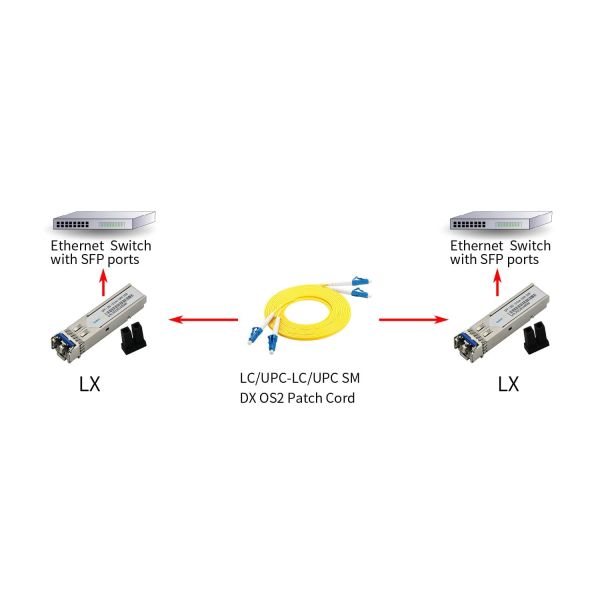

Applications
25Gb/s 1310nm 10km SFP28 Transceiver For High Speed 25G Ethernet Data Centers
Frequently Asked Questions
For detailed technical support and frequently asked questions about our 25G SFP28 transceivers, please contact our technical support team or refer to our comprehensive product documentation.
